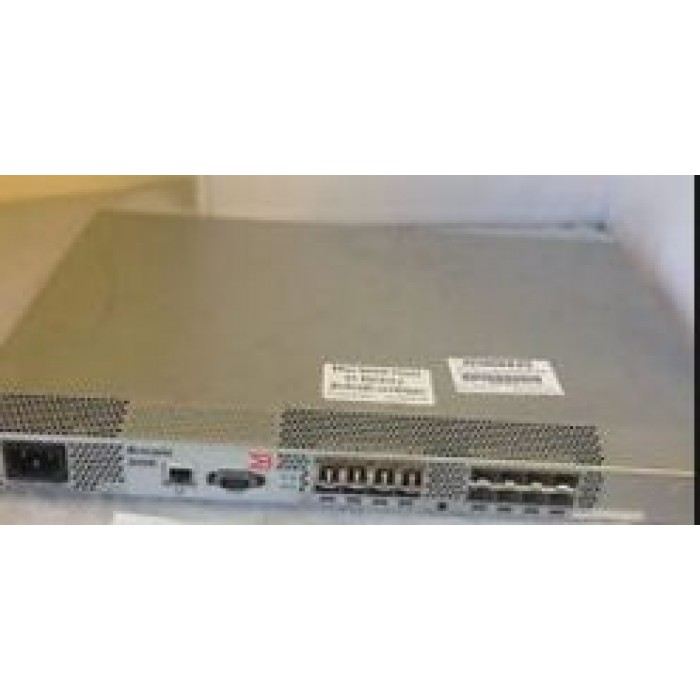

BROCADE SILKWORM 200E FIBRE CHANNEL SAN SWITCH 3711397-01
Click Image for Gallery
| Fibre Channel ports | |||
Ports per chassis: 16 - 4 Gb GL ports. Starts at 8 ports and grows in increments of 4 - (i.e., 8,12,16) Media Type: Hot-plug, industry standard LC small form factor pluggable (SFP) | |||
| Scalability | |||
Full fabric up to 16 switches in a fabric | |||
| Certified maximum | |||
10 switches, 3 hops Larger fabrics may be certified as required | |||
| Interoperability | |||
The Brocade SilkWorm 200E supports all Dell/EMC switch products | |||
| Performance | |||
1.0625, 2.125 and 4.25 Gb/sec, full duplex Aggregate Aggregate Throughput: 128 Gb/sec Latency: 1.2 µ sec. with no contention, cut-through routing at 4 Gbit/sec | |||
| ISL Trunking | |||
16 ISLs - Use Any Port for ISL Trunks interoperate with Brocade, Cisco, QLogic | |||
| Aggregate bandwidth | |||
128 Gb/sec end to end | |||
| Fabric latency | |||
1.2 µsec with no contention, cut-through routing at 4 Gb/sec | |||
| Maximum frame size | |||
2112-byte payload | |||
| Classes of Service | |||
Class 2, Class 3, Class F (inter-switch frames) | |||
| Port Types | |||
FL_Port, F_Port, and E_Port Self-discovery based on switch type (GL_Port, or Brocade U_Port) | |||
| Data Traffic Types | |||
Fabric switches supporting unicast and broadcast | |||
| Media Types | |||
Small Form-factor Pluggable (SFP) laser Short-wave up to 500 meters (1640 feet) Long-wave up to 10 kilometres (6.2 miles) | |||
| Fabric Services | |||
Simple Name Server Registered State Change Notification (RSCN) Brocade Advanced Zoning Monitoring Brocade Web Tools | |||
| Options | |||
SFP Media; fixed rail kit | |||
| Management software supported | |||
Telnet SNMP (FE MIB, FC Management MIB) Brocade Advanced Web Tools with ease-of-use and ease-of-setup features Brocade Advanced Zoning Brocade Fabric Manager (optional) | |||
| Management Access | |||
10/100 Ethernet port (RJ-45) Serial port (RS-232) In-band through Management Server | |||
| Diagnostics | |||
POST and embedded online/offline diagnostics | |||
| Physical Specifications | |||
Non-port to port side airflow 1U, 19-inch EIA compliant Height: 1.69 inches (4.29 centimetres) Width: 16.87 inches (42.85 centimetres) Depth: 12.10 inches (30.73 centimetres) 8.8 lbs (without SFPs) | |||
| Environmental Specifications | |||
| Temperature Operating: 0°C to 40°C (32°F to 104°F) Non-Operating: -50°C to 100°C (-58°F to 212°F) Humidity Operating: 20 to 85 percent non-condensing at 40°C (104°F) Non-Operating: 10% to 85%, non-condensing at 70° C (158° F) Altitude Operating: Up to 3000 meters (9800 feet) Non-Operating: Up to 12 km (32,200 feet) | |||
| Airflow | |||
High speed: 37 CFM Low speed (65%): 18 CFM | |||
| Power Requirements | |||
System power consumption: 60 Watts max, 45 Watts typical Nominal input voltage: 100 to 240 VAC, Universal Input line frequency: 47 to 63 Hz Minimum input voltage: 100 VAC Maximum input voltage: 240 VAC BTU rating (80% efficiency): 512 BTU/hr Inrush current: Maximum of 15 amps for period between 10 to 150 ms at 50° Celsius (122° Fahrenheit
| |||
